Ground anchor

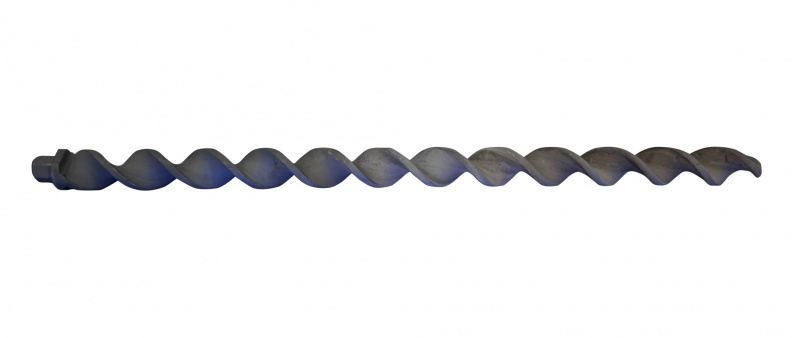

The Prolyte Ground Anchors are special designed anchors, 50mm diameter and available in three lengths: 840mm, 1050mm and 1260mm. Where normal anchors (round pegs) have an allowable maximum vertical load of 300kg, Prolyte Ground Anchors can be loaded from 550 till 2200kg per anchor, depending on the length of anchor and the subsoil. Loading figures are available for the available anchor lengths in combination with several types of subsoil. Also, a test rig is available which can perform tensile tests on anchors to check the actual tensile load on the anchors at the specific location. The test rig can be used without the use of external power supplies.

Technical Specs:

50mm diameter
Available in three lengths: 840mm, 1050mm and 1260mm.
Prolyte Ground anchors can be loaded from 550kg till 2200kg per anchor, depending on the length of anchor and the subsoil.

Example:
A Prolyte MPT12x10 requests for +/-15.200kg ballast (equals 16x a water tank of 1x1x1m = 16m³ of transport volume). With the Prolyte Ground Anchors the same amount of ballast can be generated by means of 16x 1050mm anchors (transport volume of 0.04m³).
Which is 400x less transport volume!

Instructions

Ground_Anchor_Eng
Size: 2 MB
