RT-S52SV

Prolyte

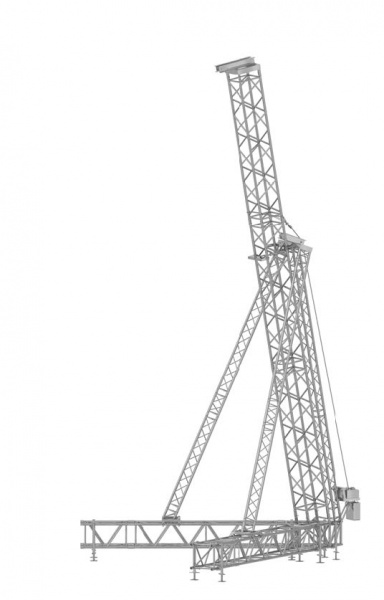

The medium-to-heavy-duty RT-S52SV has a loading capacity of 1400 to 2900 kg and a maximum lifting height of 12,95 m (please refer to the technical specifications table for further details). The RT-S52SV is based on S52SV truss with stabilisers of H30D truss. It has a self-weight of 520 kg. The legs of the V-shaped base can be levelled by means of screw jacks, which are attached to the side of the legs. After the base is placed, the mast can be built and erected using the hinges on the base corner. The mast should be stabilised by means of the braces, which fix to the legs. After the system is levelled and ballast is applied, the load can be hoisted into position.
The RT-S52SV rigging tower is the ideal solution for medium to large scale events where flexibility counts, including festivals, concerts, or other major public events. The RT-S52SV can be converted from one type to another by simply adjusting the length of the mast.

Technical specifications - RT - S52SV - 1,4T / RT - S52SV - 2,0T / RT - S52SV - 2,9T

RT - S52SV - 1,4T

RT - S52SV - 2,0T

RT - S52SV - 2,9T

max. overall height

13,15 m

11,18 m

10,19 m

max. lifting height

12,95 m

10,95 m

9,95 m

max. Loading capacity

1400 kg (3080 lbs)

2050 kg (4510 lbs)

2900 kg (6380 lbs)

max. Surface front load

5 m2

7,5 m2

10 m2

max. surface side load

2,5 m2

3,75 m2

5 m2

truss sections

S52SV

S52SV

S52SV

stabiliser

H30D

H30D

H30D

coupling system

CCS7 series

CCS7 series

CCS7 series

alloy alu parts

EN - AW 6082 T6

EN - AW 6082 T6

EN - AW 6082 T6

ballast

150 kg

200 kg

200 kg

max. windspeed

20,7 m/s (46.3 mph)

20,7 m/s (46.3 mph)

20,7 m/s (46.3 mph)

system weight

520 kg (1144 lbs)

495 kg (1089 lbs)

463 kg (1018 lbs)

Instructions

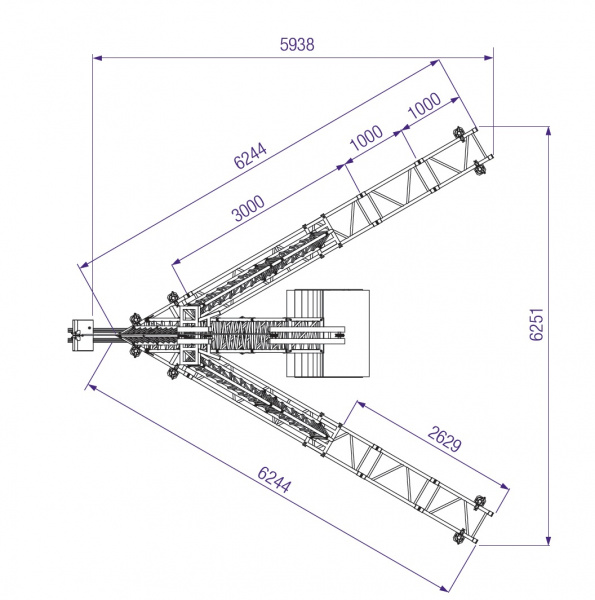

Drawing 1
Size: 272 KB

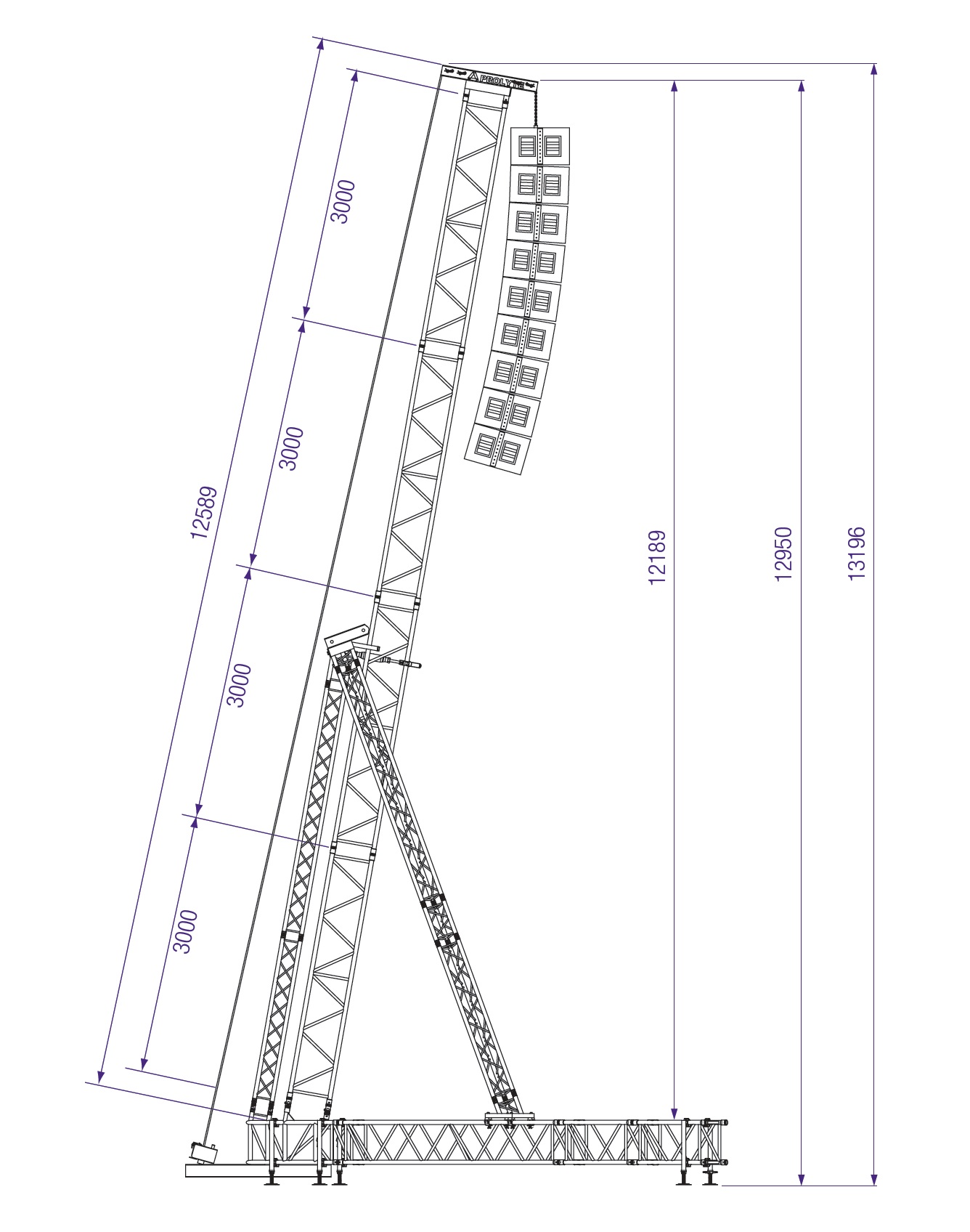

Drawing 2
Size: 159.5 KB
